Eden Antique Tiled Insert
PRODUCT DETAILS

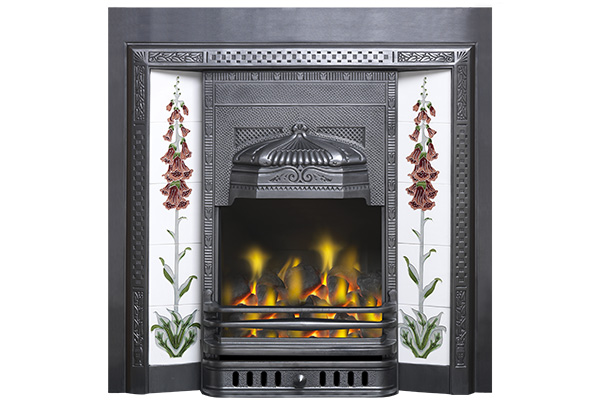

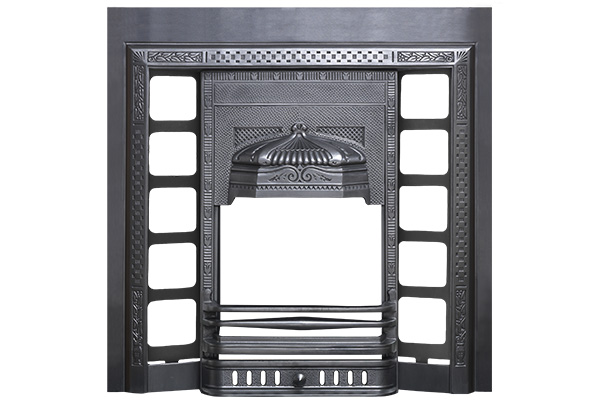

The Eden Integra is a traditional tiled insert with an ornate patterned canopy shown here in an antique (graphite) finish. this model is also available in a matt black finish.

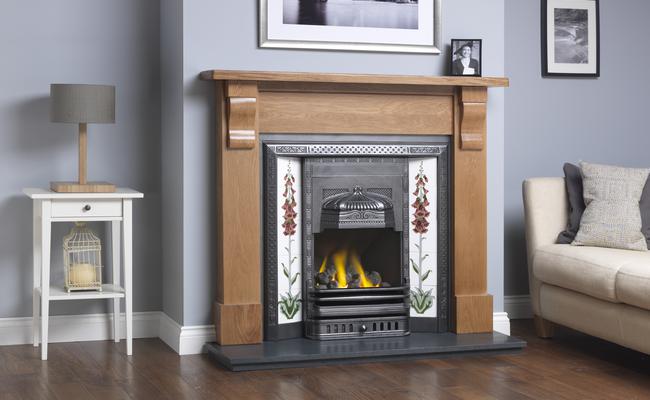

The Eden is displayed inside the Sherwood mantel in solid oak (with light oak finish), a Foxglove hand painted tile set in burgundy and ivory and with a honed black granite hearth.


Our full range of hand painted tile sets and cast-iron sleeve alternatives are shown on the tiles page. Our full range of oak mantels can be seen on the mantel's page.


TECHNICAL SPECIFICATION
tiled insert diagram
Width (A) 968mm
Height (B) 958mm
Minimum mantel aperture required (Width) (C) 888mm
Minimum mantel aperture required (Height) (D) 877mm
Rebate (E)70mm
Gas Fire Options


convertor_plus
FLUE TYPESGAS FIRE OPTIONS
Traditional chimney (Class 1) Integra HO
Convertor Plus
Integra HE (Glass Fronted)
Pre-Fabricated (Class 2) Integra HO
Convertor Plus
Integra HE (Glass Fronted)
Pre-Cast FlueClassic Multiflue
No ChimneyBalanced Flue
convertor_plus
No Chimney
convertor_plus
Pre-cast
convertor_plus
Class 2
convertor_plus
Class 1


Gas Fire Specifications


HO (high output)
HO (high output)
INTEGRA HO (High Output)
OptionsTechnical Data
Natural GasYes Output High3.9kW
L.P.GYes Efficiency55%
Manual ControlYes Input High6.9kW
Slide ControlYes Air vent requiredNo
Remote ControlYes

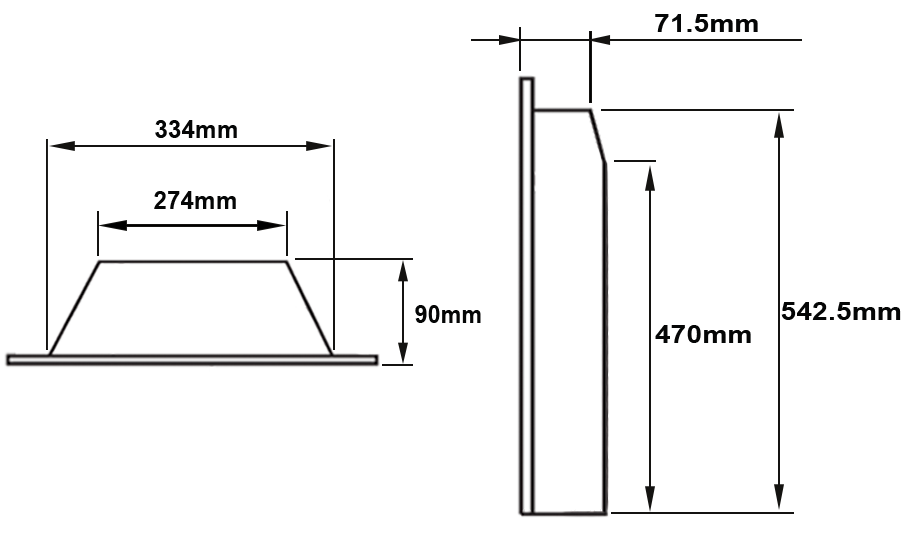

gas fire drawing C P
convertor_plus
CONVECTOR PLUS
OptionsTechnical Data
Natural GasYes Output High4.6kW
L.P.GNo Efficiency67%
Manual ControlYes Input High6.9kW
Slide ControlYes Air vent requiredNo
Remote ControlYes




gas fire drawing Classic
classic_multiflue
CLASSIC MULTIFLUE
OptionsTechnical Data
Natural GasYes Output High3.3kW
L.P.GNo Efficiency50%
Manual ControlYes Input High6.5kW
Slide ControlNo Air vent requiredNo
Remote ControlNo




gas fire drawing H.E
integra_high_efficiency_(HE)
INTEGRA HE (HIGH EFFICIENCY)
OptionsTechnical Data
Natural GasYes Output High3.8kW
L.P.GNo Efficiency83%
Manual ControlYes Input High4.6kW
Slide ControlYes Air vent requiredNo
Remote ControlYes




gas fire drawing H.E
integra_high_efficiency_(HE)
BALANCED FLUE
OptionsTechnical Data
Natural GasYes Output High3.8kW
L.P.GNo Efficiency83%
Manual ControlYes Input High4.6kW
Slide ControlYes Air vent requiredNo
Remote ControlYes


Cast Tec Ltd. reserve the right to delay or withdraw products, change designs, specifications or materials without prior notice due to continuous product development or supply issues. Photographs and designs shown in this website are the copyright and design rights of Cast Tec Ltd. and can only be used or copied with permission.
