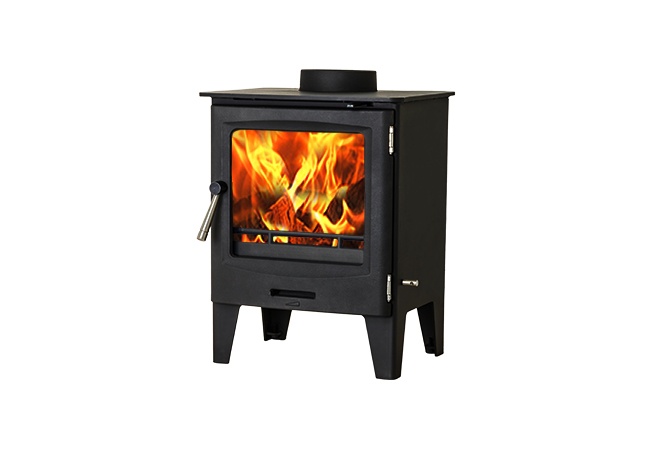

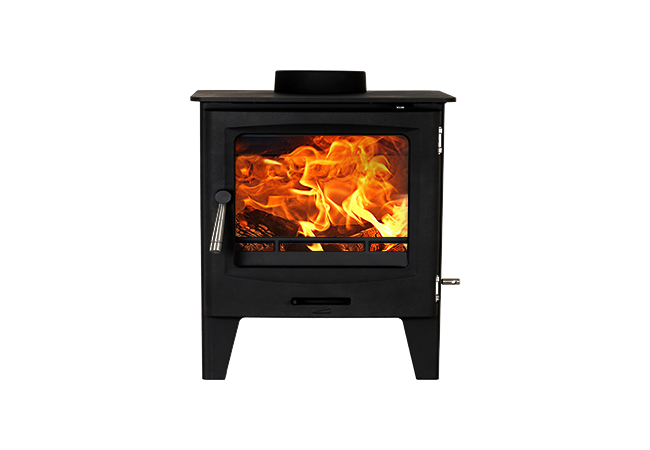

Horizon 5
PRODUCT DETAILS
The Horizon 5 is part of a family of quality multi-fuel steel stoves suitable for use with seasoned wood or approved smokeless fuels.
The simple design is perfect for the most contemporary or traditional setting. The Horizon 5 stove is available with a Log Store option. A wider version is also available on freestanding and log store models.
View Installation and User Manual
FEATURE AND BENEFITS
- multi-fuel grate for wood burning or smokeless fuels
- primary air burn (control on door)
- airwash secondary burn (lever above door)
- tertiary air inlets improve efficiency
- riddle action shakes ash into ashpit (control bottom right)
- DEFRA smoke control exempt
- 10 year conditional warranty
TECHNICAL SPECIFICATION
Fuel Type | Wood & Smokeless Fuel |
Nominal Heat Output | 4.9kW |
Construction | Mild Steel |
Weight | 59Kg |
Flue Outlet | Top or Rear 125mm (5") |
Efficiency | 75% |
Mean Flue Draught | 12pa |
Air Vent Required | No |
